Rota Lock Socket & Gasket

Product Info

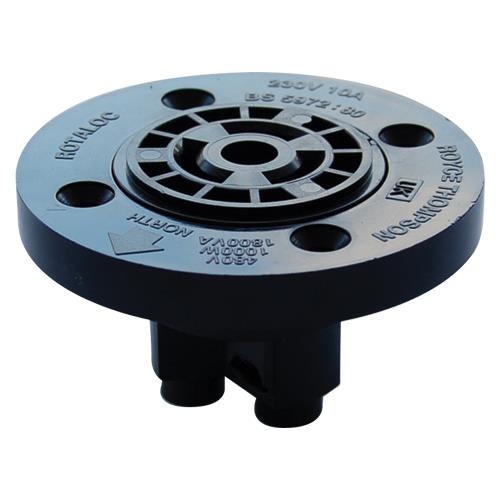

ROTALOC® Socket.
The ROTALOC socket is designed for use with all NEMA specification photocells and provides a secure, sealed mounting. The durable engineering polymer body houses Beryllium Copper contacts which provide excellent wear properties for long service life.

Voltage: 220 / 270 Vac. @ 50 Hz.
Current rating: 10A continuous.
Ingress protection: IP65.
Specification:NEMA, CSA C239/M89, IEC695:2:1
Terminals: 3 off 4mm dia. (For 2.5mm² cable).
Options: Sealing gasket, sealing cap.

Technical Data

Rota Lock Socket & Gasket
