Royce Thompson Microstar 2000 Miniature 20mm 70lux

Product Info

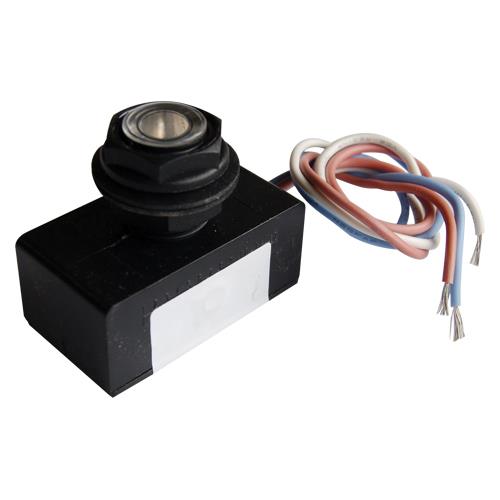

Microstar 2000 A miniature photocell with the same outstanding performance and accuracy as the OASIS 2000; perfect for street lighting and other applications where aesthetics or vandal resistance require a miniature cell but performance cannot be compromised.

Key features:

• 25 year life, with 8 year warranty.

• Very low power consumption.

• Filtered silicon photodiode.

• Patented ASIC control.

• Extremely accurate switching.

• ‘Zero crossover voltage’ switching.

• Compact dimensions.

• RoHS compliant.

Applications:

• Arterial roadway lighting. •

Vandal resistant street lighting.

• Aesthetic / architectural lighting.

• ‘High bay’ lighting.

• Floodlighting

• Tunnel and underpass lighting.

• Car park lighting.

Specification:

Sensor type: Filtered silicone photodiode.

Sensor drift: Zero over 10 years.

Standard switching level: 70 Lux ‘On’, 35 Lux ‘Off’.

Switching differential: 1:0.5.

Operating voltage: 220/270 Vac, 50/60 Hz.

Maximum lamp load (HID): 3 x 400W inductive (96µF), 10A.

Switching cycles: 20,000 minimum.

Power consumption: <0.25W. UMSUG code: 9500000.

Operating temperature range: -20/+80°C.

Warranty: 8 Years

Ingress protection (lens): IP65

Alternative switching levels: Set to meet customer requirements.

Options: Positive switching differential, lead lengths to suit application.

Dimensions (mm): W 31, L 57, D 25, lens diameter 20, lens projection 25.

DESIGN AND TESTING CERTIFICATION EMC Emissions to EN 50081-1. EMC Immunity to EN 50081-2. Vibration to BS2100. IP rating to BS EN 60529/1992. Specification to BS 5972-1980, ANSI C136.10 / 1996, ANSI C136.2 / 2004, ESMA 48/01



7TCA230100R0234
MI211111100
MI2-11111100
MICRO 2K 70LUX 25/300MM

Technical Data

Microstar 2000 Miniature 20mm Head & Lock Nuts 70lux (er12hn)
CodeDescription1+Qty
Microstar2000Royce Thompson Microstar 2000 Miniature 20mm 70lux

£19.00 exc Vat
£22.80 inc Vat
