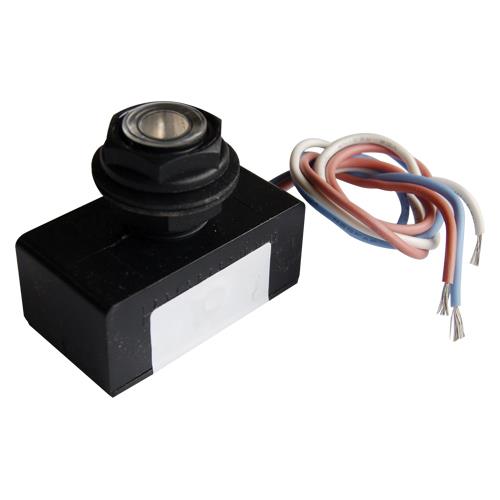

Royce Thompson MicrostarUltraHT Miniature 20mm 70lux

Product Info

Royce Thompson Microstar ULTRA HT The ultimate miniature photocell; outstanding accuracy and performance, low power consumption and high temperature operating capability. Optimised for critical applications in hostile environments. Key features: Key features: • 25 year life, with 8 year warranty. • Very low power consumption. • High temperature polycarbonate body. • Filtered silicon photodiode. • Patented ASIC control. • Extremely accurate switching. • ‘Zero crossover voltage’ switching. • Compact dimensions. • RoHS compliant. Applications: • Arterial roadway lighting. • Vandal resistant street lighting. • Aesthetic / architectural lighting. • ‘High bay’ lighting. • Floodlighting • Tunnel and underpass lighting. • Car park lighting. Specification: Sensor type: Filtered silicone photodiode. Sensor drift: Zero over 10 years. Standard switching level: 70 Lux ‘On’, 35 Lux ‘Off’. Switching differential: 1:0.5. Operating voltage: 220/270 Vac, 50/60 Hz. Maximum lamp load (HID): 3 x 400W inductive (96µF), 10A. Switching cycles: 20,000 minimum. Power consumption: <0.25W. UMSUG code: 9500000. Operating temperature range: -40/+105°C. Warranty: 12 Years Ingress protection (lens): IP65 Alternative switching levels: Set to meet customer requirements. Options: Positive switching differential, lead lengths to suit application. Dimensions (mm): W 31, L 57, D 25, lens diameter 20. DESIGN AND TESTING CERTIFICATION EMC Emissions to EN 50081-1. EMC Immunity to EN 50081-2. Vibration to BS2100. IP rating to BS EN 60529/1992. Specification to BS 5972-1980, ANSI C136.10 / 1996, ANSI C136.2 / 2004, ESMA 48/01

MI-311111200
MI3-11111200
MICRO ULT 70LUX 25/300mm1:0.5NEG 220-243VAC
7TCA230100R0261

Royce Thompson photocells are a well-known brand of photoelectric cells. They are highly regarded for their quality and reliability. Royce Thompson photocells are commonly used in outdoor lighting applications, such as streetlights and garden lights. They are designed to accurately detect changes in ambient light levels and automatically control the operation of the lights they are connected to. With their robust construction and precise light sensing capabilities, Royce Thompson photocells ensure efficient and effective lighting control, enhancing both safety and energy efficiency.

Technical Data

Royce Thompson Microstar Ultra HT Miniature 20mm Head & Lock Nuts 70lux
