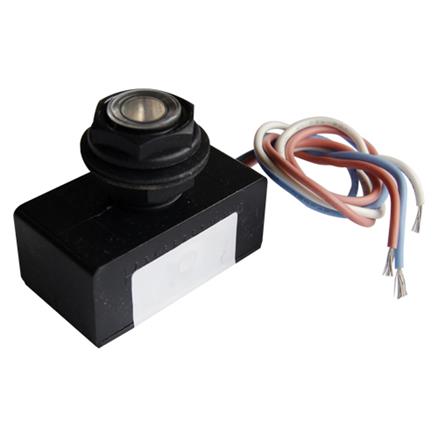

Royce Thompson NightStar/M Part-Night Miniature 20mm 70lux

Product Info

Royce Thompson Nightstar Part Night Photocells are reliable and efficient devices used for outdoor lighting control. These photocells are designed to automatically switch lights on at dusk and off at dawn, providing energy savings and convenience. The Part Night feature switches lights off at midnight and back on around 5:30am if required. For example in the summer months the lights wont come back on in the morning, but will in the winter months. This feature helps to further conserve energy while still maintaining visibility and security. Royce Thompson Nightstar Part Night Photocells are commonly used in street lighting, car parks, and other outdoor applications, providing a cost-effective and environmentally friendly solution for nighttime illumination.

Royce Thompson Nightstar Miniature Using the same proved technology as its NEMA based counterpart, the Nightstar miniature is ideally suited to part night applications where a miniature photocell is required. Either to replace existing conventional miniature photocells, or for new applications in architectural, vandal resistant or ‘slimline’ luminaires. Key features: • 25 year life, with 10 years warranty. • Very low power consumption. • Photo I C. • Extremely accurate switching. • ‘Zero crossover voltage’ switching. • Standard miniature photocell dimensions. • RoHS compliant. Applications • Energy saving replacement for conventional miniature photocells. • Rural roadway lighting. • Local authority street lighting. • Footway and sign lighting. • Tunnel and underpass lighting. • Industrial, retail and commercial lighting. • Cap park lighting.

Specification:

Sensor type: Photo IC. Sensor drift: Zero over 10 years. Standard switching level: 70 Lux ‘On’, 35 Lux ‘Off’. Switching differential: 1:0.5. Operating voltage: 90/265 Vac, 50/60 Hz. Maximum lamp load (HID): 2 x 400W inductive (96µF). Switching cycles: 40,000 minimum. Power consumption: <0.25W. Operating temperature range: -20/+80°C. Warranty: 10 Years. Ingress protection (lens): IP65. Standard programme: Dusk ‘On’ / 2400Hrs ‘Off’ 0530Hrs ‘On’ / Dawn ‘Off’. Custom programme: Switching points factory programmed to meet customer requirements. Dimensions (mm): W 31, L 57, D 25, lens dia. 20, lens projection 25, (17mm option). DESIGN AND TESTING CERTIFICATION EMC Emissions to EN 50081-1. EMC Immunity to EN 50081-2. Vibration to BS2100. IP rating to BS EN 60529/1992. Specification to BS 5972-1980, ANSI C136.10 / 1996, ANSI C136.2 / 2004, ESMA 48/01

7TCA230200R0071
SP712111510
SP7-12111510

Technical Data

Royce Thompson Nightstar Part Night Miniature 20mm Head & Lock Nuts 70lux
