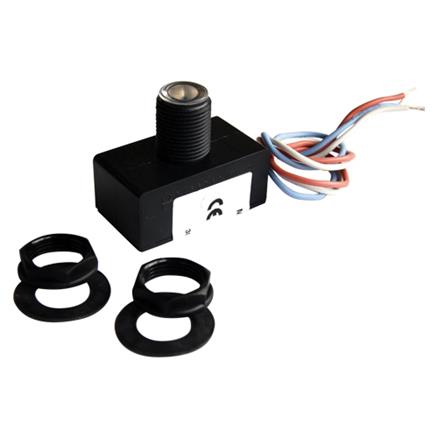

Royce Thompson P12HE Miniature 20mm 70lux

Product Info

Royce Thompson P12HE A low cost, robust and reliable photocell for use in industrial, commercial and residential applications. Key features: • Compact miniature body • Reliable electromagnetic relay. • 300mm leads as standard. Applications: • Bulkhead light fittings. • Security lighting and Area (flood) lighting. Specification: Sensor type: Cadmium sulphide. Standard switching level: 70 Lux. Switching differential: 1:1.5 Operating voltage: 220/270 Vac, 50/60 Hz. Maximum lamp load: 2 x 250Winductive (60µF). Maximum resistive load: 2000W. Power consumption: 0.96W. Operating temp range: -15/+65°C. Warranty: 2 years Ingress protection: IP65 (lens only). Options: Switching levels and wire length to meet customer requirements. 17mm lens projection. Dimensions (mm): W31, L57, D 25, lens diameter 20, lens projection 25.

7TCA230100R0184
MI512111103PT
MI-512111103PT

Technical Data

Royce Thompson P12HE Miniature 20mm Head & Lock Nuts 70lux
