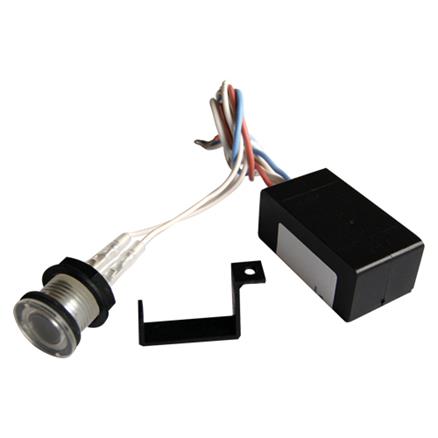

Royce Thompson P12RE Miniature 20mm Remote 70lux

Product Info

Royce Thompson P12RE A low cost and reliable electronic photocell with a robust remote detector. Key features: • Compact miniature body with remote detector. • Reliable electromagnetic relay. • Controller fitted with 300mm leads as standard. Applications: • Bulkhead and security lighting where space limitations or other factors require the use of a remote sensor. Specification: Sensor type: Cadmium sulphide. Standard switching level: 70 Lux. Switching differential: 1:1.5 Operating voltage: 220/270 Vac, 50/60 Hz. Maximum lamp load: 2 x 250Winductive (60µF). Maximum resistive load: 2000W. Power consumption: 0.96W. Operating temp range: -15/+65°C. Warranty: 2 years Ingress protection: IP65 (detector only). Options: Switching levels and wire length to meet customer requirements.. Dimensions (mm): W31, L57, D 25, detector thread diameter 20.

7TCA230100R0182
MI612113103PT
MI-612113103PT

Royce Thompson photocells are a well-known brand of photoelectric cells. They are highly regarded for their quality and reliability. Royce Thompson photocells are commonly used in outdoor lighting applications, such as streetlights and garden lights. They are designed to accurately detect changes in ambient light levels and automatically control the operation of the lights they are connected to. With their robust construction and precise light sensing capabilities, Royce Thompson photocells ensure efficient and effective lighting control, enhancing both safety and energy efficiency.

Technical Data

Royce Thompson P12RE Miniature With 20mm Remote Detector Head & Lock Nuts 70lux
