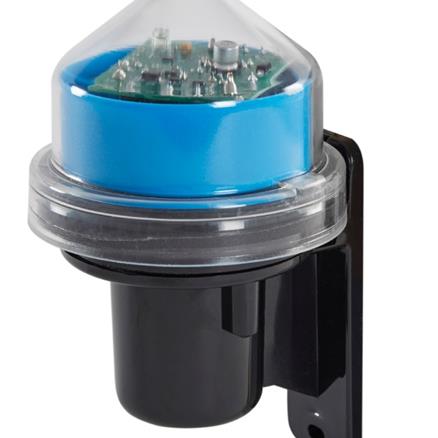

Royce Thompson Oasis 2000 Photo-Cell Head & Kit 70lux

Product Info

The Royce Thompson OASIS 2000 is the best photocell available for applications where accuracy, reliability and long service life are critical; its design excellence is combined with high quality components and an exhaustive test programme to consistently deliver performance. OASIS 2000 is then supported by a 12 year warranty, back by the global T&B corporation.

Key Features:

• 25 year life, with 12 years warranty.

• Very low power consumption.

• Filtered silicon photodiode.

• Patented ASIC control.

• Extremely accurate switching.

• Highly durable sealed body.

• UV stabilised acrylic cone.

Applications: • Arterial roadway lighting. • PFI street lighting projects. • Local authority street lighting. • Security lighting. • Flood lighting • Tunnel and underpass lighting.

Specification:

Sensor type: Filtered silicon photodiode

Sensor drift: Zero over 10 years

Standard switching level: 70 Lux ‘On’, 35 Lux ‘Off’.

Switching differential: 1:0.5

Operating voltage: 220 / 270 Vac +/- 10%, 50/60 Hz.

Maximum lamp load (HID): 3 x 400W inductive (96µF), 10A.

Switching cycles: 40,000 minimum

Power consumption: <0.25W UMSUG code: 9500000

Operating temperature range: -20 / +80°C

Warranty: 12 Years

Ingress protection: IP67

Surge protection: 320J

Alternative switching levels: Can be set to meet customer’s individual requirements. Options: Conduit base, ‘reverse acting’ switching differential, 110Vac units.

DESIGN AND TESTING CERTIFICATION EMC Emissions to EN 50081-1. EMC Immunity to EN 50081-2. Vibration to BS2100. IP rating to BS EN 60529/1992. Specification to BS 5972-1980, ANSI C136.10 / 1996, ANSI C136.2 / 2004, ESMA 48/01



7TCA230050R0153
OP211121100
OP211121100

Technical Data

Royce Thompson Oasis 2000 Photo-Cell Head & Kit 70lux
CodeDescription1+Qty
Oasis2000KTRoyce Thompson Oasis 2000 Photo-Cell Head & Kit 70lux

£39.95 exc Vat
£47.94 inc Vat
