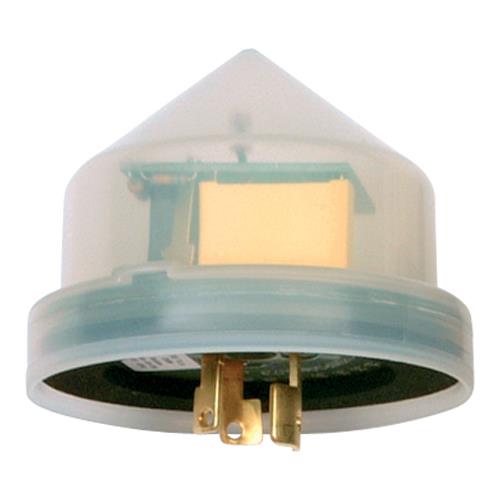

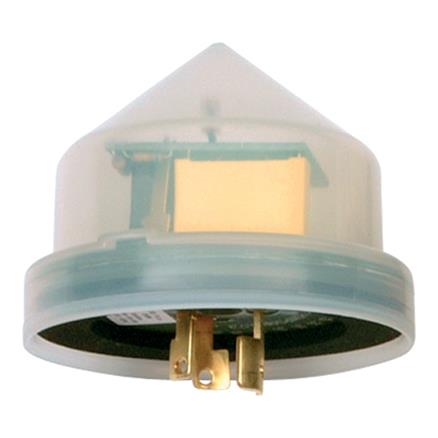

The Royce Thompson S300 provides a complete photo electronic control package for switching of industrial or domestic lighting installations. It combines an accurate, reliable and low cost photocell while offering precise lighting control and energy saving at an affordable price. Key Features: • Omni-directional photocell with built in time delay to prevent unwanted switching. • Flame retardant plastic components. • RoHS Compliant. Applications: • Factory exterior lighting. • Residential exterior lighting. • Industrial / amenity security lighting. • Switching other loads on and off at dusk / dawn. Photocell Specification: Operating Voltage: 230 Vac +/- 10%, 50/60Hz. Maximum lamp load (HID): 2 x 250W 60µF. 2000W (res)* Switching differential: 1:1.5 / 2 positive. Power consumption: 0.6W Operating temperature range: -20/+80°C. Warranty: 2 Years Ingress Protection: IP65 Options: 320J MOV Surge Arrestor. 12/24/48V dc, 110 Vac. Reverse acting. *Not suitable for 1 x 400W. Head only.
