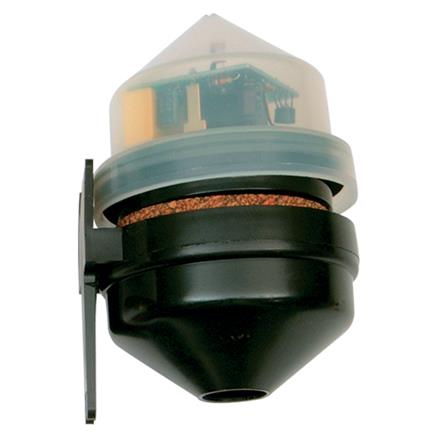

Royce Thompson S300 Photocell Kit 70lux

Product Info

The Royce Thompson S300 kit provides a complete photo electronic control package for switching of industrial or domestic lighting installations. It combines an accurate, reliable and low cost photocell with a high quality ‘ROTALOC®’ socket and wall bracket; offering precise lighting control and energy saving at an affordable price.

Key Features:
• Kit includes photocell, rotaloc socket, and wall mounting bracket sealing gasket, screws, wall plugs and installation instructions.
• Omni-directional photocell with built in time delay to prevent unwanted switching.
• Flame retardant plastic components.
• RoHS Compliant.

Applications:
• Factory exterior lighting.
• Residential exterior lighting.
• Industrial / amenity security lighting.
• Switching other loads on and off at dusk / dawn.

Photocell Specification:

Operating Voltage: 230 Vac +/- 10%, 50/60Hz.
Maximum lamp load (HID): 2 x 250W 60µF. 2000W (res)*
Switching differential: 1:1.5 / 2 positive.
Power consumption:0.6W
Operating temperature range: -20/+80°C.
Warranty:2 Years
Ingress Protection: IP65
Options: 320J MOV Surge Arrestor. 12/24/48V dc, 110
Vac. Reverse acting.

*Not suitable for 1 x 400W.

7TCA230050R0135
OP712231100PT
OP-712231100PT

Technical Data

Royce Thompson S300 Photo-Cell Head & Kit 70lux
