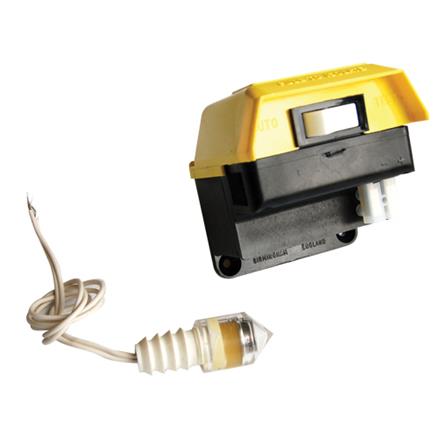

Royce Thompson P42E 2 Part Photo-Cell 70lux

Product Info

The Royce Thompson P42E with its integral ‘press to test’ facility and compact detector is ideal for installations where regular operational testing of remote luminaires is a requirement.

Key features:

• Compact 14mm ‘push fit’ detector

• Integral ‘press to test’ facility

• Robust plastic controller

Applications:

• Exterior industrial and commercial lighting

• Security lighting

• Car park / ‘park and ride’ lighting

• All lighting control applications where regular functional testing is required but luminaire access is restricted or difficult.

Specifications:

Sensor type: Cadmium sulphide | Operating voltage: 220/270 | Vac. 50/60 Hz | Maximum lamp load (HID): 2 x 250W 60µF. 2000W (res)* | Switching differential: 1:1.5 positive | Switching level: 70 Lux | Power consumption: 0.6W | Operating temperature range: -15/+65°C | Warranty: 2 years | Ingress protection: IP65 (detector), IP54 (housing).

7TCA230150R0094
TP111121115PT

Technical Data

Royce Thompson P42: 2 Part Photo-Cell 70lux
